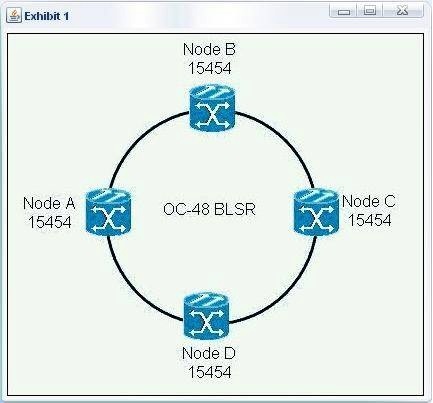

Click the Exhibit button.

If you have a fiber cut on all four fibers between nodes C and D in the following diagram put the
events listed below in correct chronological sequence.
1. node A loops back traffic in the direction of node E
2. node D initiates a line switch and signals the fact in the K2 byte
3. node C loops back traffic in the direction of node B
4. both sides switch traffic to the protect channel and the circuit is restored in less than 50 ms
5. nodes C detects the loss of signal and signals the fact in the K1 byte

A.
1,2,5,3,4

B.
2, 1,5,3,4

C.
5,3, 1,2,4

D.
5,3,4, 1,2
