HOTSPOT
Your network contains an Active Directory domain named contoso.com.
Technicians use Windows Deployment Services (WDS) to deploy Windows Server 2012 R2.
The network contains a server named Server1 that runs Windows Server 2012 R2. Server1 has the
Hyper-V server role installed.
You need to ensure that you can use WDS to deploy Windows Server 2012 R2 to a virtual machine
named VM1.
Which settings should you configure?
To answer, select the appropriate settings in the answer area.
Answer:
Explanation:
WDS Allows network-based installation of Windows operating systems, which reduces the
complexity and cost when compared to manual installations. Thus you should configure the
appropriate network settings.
Reference: http://technet.microsoft.com/en-us/library/hh831764.aspx
Shouldn’t this be BIOS, changed to boot from network, not CD?
0
0
https://blogs.technet.microsoft.com/askcore/2008/11/25/installing-a-vm-operating-system-using-a-legacy-network-adapter-and-pxe-boot/
0
0

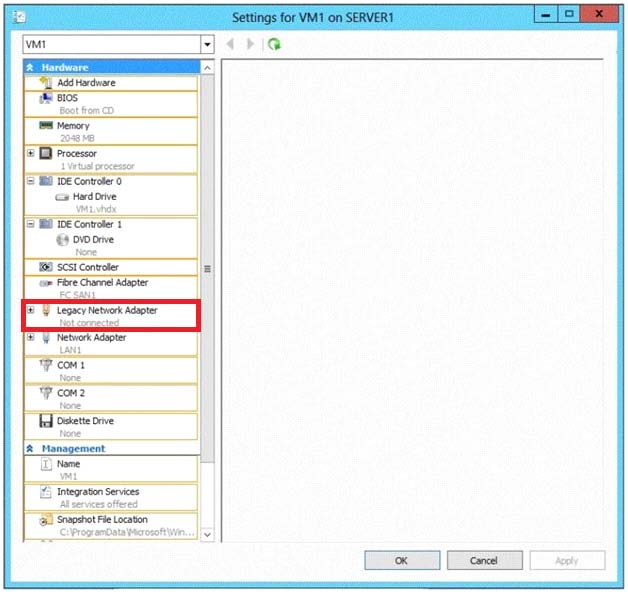

You need a legacy network adapter in order to use PXE boot in VM because this kind of adapter can be used even before any OS is booted. In this question the adapter is added but not attached to any Virtual Switch. you should attach it to the appropriate virtual switch.
