You work as a Network Administrator for Tech Perfect Inc. The company has a TCP/IP-based routed

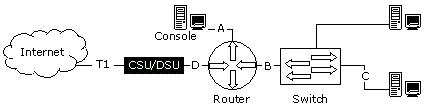

network. The network is configured on Cisco devices. The network is configured as shown in the
image below:
Following is a list of the types of cable used in networking:
Which of the following options is correct regarding the types of cable used for connecting different
networking devices on the network?
A.
A-4, B-3, C-2, D-1
B.
A-3, B-1, C-1, D-4
C.
A-1, B-2, C-3, D-4
D.
A-2, B-1, C-4, D-3
B must be A-3, B1, C2, D4
0
0
I think you are right
0
0
and im wrong. B is correct
I.E. Router – Router = crossover.
PC/Laptop – Router = crossover.
Switches and Hubs, well they do not deal with layer 3 unless it is a layer 3 switch, so think of those as like devices.
Switch to Hub = Crossover.
Anything that isnt a like device will connect via straight through.
PC/Laptop to Switch = straight through
Switch to Router = straight through
