HOTSPOT
Your network contains two Web servers named Server1 and Server2. Both servers run Windows Server 2012
R2.
Server1 and Server2 are nodes in a Network Load Balancing (NLB) cluster. The NLB cluster contains an
application named App1 that is accessed by using the name appl.contoso.com.
The NLB cluster has the port rules configured as shown in the exhibit. (Click the Exhibit button.)

To answer, complete each statement according to the information presented in the exhibit. Each correct
selection is worth one point.
Hot Area:

HOTSPOT
Your network contains an Active Directory domain named contoso.com. The domain contains the two servers.
The servers are configured as shown in the following table.

ou investigate a report about the potential compromise of a private key for a certificate issued to Server2.
You need to revoke the certificate issued to Server2. The solution must ensure that the revocation can be
reverted.
Which reason code should you select?
To answer, select the appropriate reason code in the answer area.
Hot Area:

HOTSPOT
Your network contains two DHCP servers named Server1 and Server2. Server1 fails.
You discover that DHCP clients can no longer receive IP address leases.
You need to ensure that the DHCP clients receive IP addresses immediately.
What should you configure from the View/Edit Failover Relationship settings? To answer, select the appropriate
setting in the answer area.
Hot Area:

HOTSPOT
Your network contains an Active Directory domain named contoso.com. The domain contains two member
servers named Server1 and Server2. All servers run Windows Server 2012.
Server1 and Server2 have the Hyper-V server role and the Failover Clustering feature installed.
Server1 and Server2 are members of a cluster named Cluster1. Cluster1 hosts 10 virtual machines.
When you try to migrate a running virtual machine from one server to another, you receive the following error
message: “There was an error checking for virtual machine compatibility on the target node.”
You need to ensure that the virtual machines can be migrated from one node to another.
From which node should you perform the configuration?
To answer, select the appropriate node in the answer area.
Hot Area:

HOTSPOT
Your network contains an Active Directory domain named contoso.com. The domain contains a server named
Server1 that runs Windows Server 2012 R2. Server1 has the Active Directory Federation Services server role
installed.
You need to make configuration changes to the Windows Token-based Agent role service.
Which tool should you use?
To answer, select the appropriate tool in the answer area.
Hot Area:

HOTSPOT
Your network contains an Active Directory domain named contoso.com. The domain contains a server named
Server2 that runs Windows Server 2012 R2.
You are a member of the local Administrators group on Server2. You install an Active Directory Rights
Management Services (AD RMS) root cluster on Server2.
You need to ensure that the AD RMS cluster is discoverable automatically by the AD RMS client computers and
the users in contoso.com.
Which additional configuration settings should you configure? To answer, select the appropriate tab in the
answer area.
Hot Area:

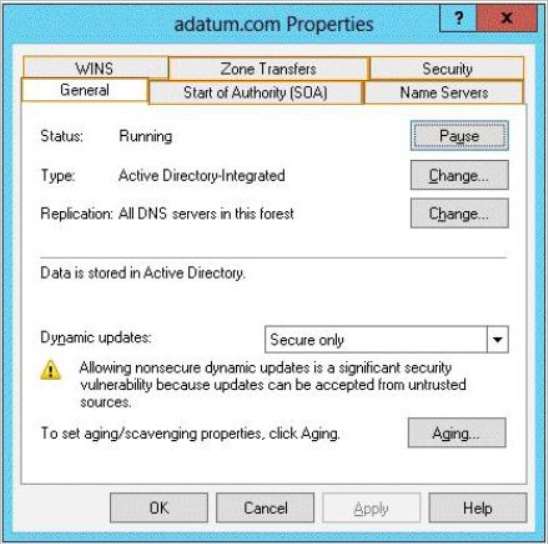

HOTSPOT
Your network contains an Active Directory domain named adatum.com. All servers run Windows Server 2012
R2. All domain controllers have the DNS Server server role installed.
You have a domain controller named DC1.
On DC1, you create an Active Directory-integrated zone named adatum.com and you sign the zone by using
DNSSEC.
You deploy a new read-only domain controller (RODC) named RODC1.You need to ensure that the contoso.com zone replicates to RODC1.
What should you configure on DC1?
To answer, select the appropriate tab in the answer area.
Hot Area:

HOTSPOT
Your network contains an Active Directory domain named contoso.com. The domain contains two Active
Directory sites named Site1 and Site2.
You need to configure the replication between the sites to occur by using change notification.Which attribute should you modify?
Hot Area:

HOTSPOT
Your network contains an Active Directory domain named contoso.com. The domain contains an enterprise
certification authority (CA).
The domain contains a server named Server1 that runs Windows Server 2012 R2. You install the Active
Directory Federation Services server role on Server1.
You plan to configure Server1 as an Active Directory Federation Services (AD FS) server. The Federation
Service name will be set to adfs1.contoso.com.
You need to identify which type of certificate template you must use to request a certificate for AD FS.
Hot Area:

HOTSPOT
Your network contains an Active Directory domain named contoso.com. The domain contains a server named
Server1 that runs Windows Server 2012 R2. Server1 has the Active Directory Federation Services (AD FS)
server role installed.
Adatum.com is a partner organization.
You are helping the administrator of adatum.com set up a federated trust between adatum.com and
contoso.com. The administrator of adatum.com asks you to provide a file containing the federation metadata of
contoso.com.
You need to identify the location of the federation metadata file. Which node in the AD FS console should you
select?
To answer, select the appropriate node in the answer area.
Hot Area:
