DRAG DROP
You have an Exchange Server 2013 organization that contains a database availability group (DAG) named
DAG1. The organization contains three servers. The servers are configured as shown in the following table.

EX1 and EX2 are members of DAG1. EX1 has an active copy of a database named DB1 and a passive copy of
a database named DB2. EX2 has a passive copy of DB1 and an active copy of DB2.
You plan to create a public folder named Invoices.
You need to ensure that users can access the Invoices public folder if one of the DAG members fails. The
solution must ensure that the users can send email messages to the Invoices public folder.
Which three actions should you perform in sequence? (To answer, move the appropriate three actions from the
list of actions to the answer area and arrange them in the correct order.)
Select and Place:

HOTSPOT
A school has 200 students and 10 classes. Each class has 20 students. Each class has one teacher. The
school has five administrative staff members.
You need to design an Exchange Server 2013 organization for the school. The design must meet the following
requirements:
Students must be able to view only the email addresses of the other students in their class, the teacher of their
class, and the entire administrative staff.
Teachers must be able to view only the email addresses of the students in their class, all of the other teachers,
and the entire administrative staff.
The administrative staff must be able to see the email addresses of everyone.
Everyone will use Microsoft Outlook 2013 to view a list of all the users.You need to identify the minimum number of address lists, global address lists, Offline Address Books (OABs),
and address book policies required for the design.
How many of each should you identify? (To answer, select the appropriate numbers in the answer area.)
Hot Area:

DRAG DROP
You are migrating an existing Exchange Server 2007 organization to Exchange Server 2013. You expect the
migration to last several weeks.
The servers in the organization are configured as shown in the following table.

Users who have mailboxes on all of the servers will access Outlook Anywhere by using the mail.contoso.com
name.
You need to recommend which servers must be associated to the autodiscover.contoso.com and
mail.contoso.com names.
Which servers should you identify for each name?
To answer, drag the appropriate servers to the correct name in the answer area. Each server may be used
once, more than once, or not at all. Additionally, you may need to drag the split bar between panes or scroll to
view content.
Select and Place:

You have an Exchange Server 2013 organization.
Each user has an In-Place Archive.
You discover that several items in a user’s In-Place Archive are corrupt.
You need to ensure that the user can access the corrupt items.
Which tool should you use?

HOTSPOT

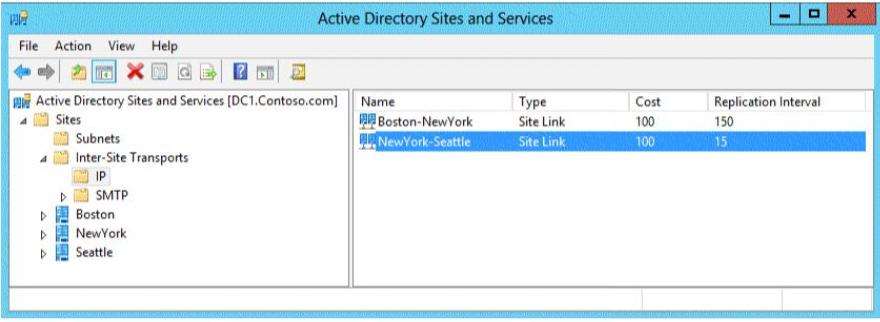

Your company has three main offices. Each office is configured as an Active Directory site as shown in the
exhibit (Click the Exhibit button.)

You have an Exchange Server 2013 organization. Each office contains Exchange servers.
All users access their mailbox by using Outlook Web App. All of the users have a mailbox on a server in their
respective office.

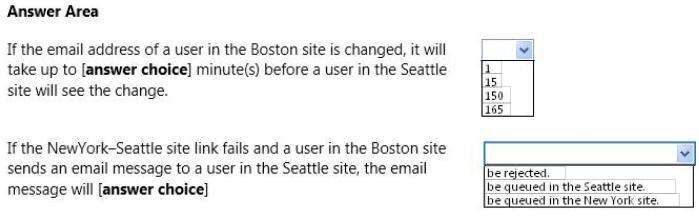

Use the drop-down menus to select the answer choice that completes each statement.
Hot Area:

You have an Exchange Server 2013 organization that contains a server named Server1. Server1 has the Client
Access server role and the Mailbox server role installed.
You monitor the performance of Server1, and you discover that the Exchange Server transport services
consume a high amount of processor resources.
You need to limit the amount of processor resources that the Exchange Server transport services consume.
Which three cmdlets should you run?

DRAG DROP
You have an Exchange Server 2013 organization.
You create a script named New-CustomMailbox.ps1 to create mailboxes based on your company’srequirements.
You create a role group named Mailbox Provisioning.
You need to ensure that the members of Mailbox Provisioning can create new mailboxes only by using NewCustomMailbox.ps1.
In which sequence should you run the commands? (To answer, move all of the commands from the list of
commands to the answer area and arrange them in the correct order.)
Select and Place:

Your company has an Exchange Server 2013 organization. All Exchange servers have the Client Access server
role and the Mailbox server role installed. All of the servers are members of a database availability group (DAG)
named DAG1.You need to ensure that a user named User1 can move mailboxes between the servers. The solution must
minimize the number of permission assigned to User1.
To which role group should you add User1?

HOTSPOT
Your network contains two Active Directory sites named MainSite and DRSite.
You have an Exchange Server 2013 organization that contains two servers. The servers are configured as
shown in the following table.

The active copy of DB1 is located on EX1. There are typically 100 MB of log files queued on EX1.
You need to recommend a procedure to allow administrators to mount the mailbox database copies on EX2 if
EX1 fails. The recovery point objective (RPO) for mailbox data is 200 MB.
Which command should you recommend running? (To answer, select the appropriate options in the answerarea.)
Hot Area:

Your network contains an Active Directory forest named contoso.com. The forest contains one domain.

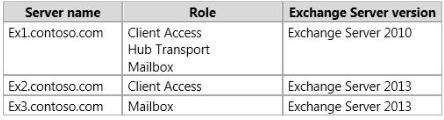

You have an Exchange Server organization that contains three servers. The servers are configured as shown
in the following table.

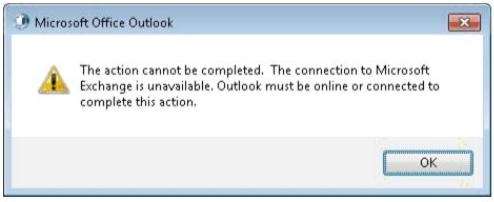

An administrator implements Outlook Anywhere on Exchange Server 2013.Remote users who have a mailbox hosted on EX1 report that they receive the following error message when
they attempt to configure a Microsoft Outlook profile.

Remote users who have a mailbox hosted on EX3 can configure an Outlook profile successfully.
You need to ensure that the remote users who have a mailbox on EX1 can access their mailbox by using
Outlook Anywhere.
What should you do?
