DRAG DROP
You have a Windows Server 2012 R2 server that has the Hyper-V role installed. The company has the
following requirements for the Hyper-V host server:
Virtual machines (VMs) must only communicate with other VMs.
You must be able to monitor all TCP/IP packets to and from VMs from the moment that VMs are
able to communicate.
You must support a third-party program that uses the Network Driver Interface Specification (NDIS)
API to monitor the TCP/IP packets between VMs.
You need to configure the environment.
Which three actions should you perform in sequence? To answer, move the appropriate actions
from the list of actions to the answer area and arrange them in the correct order.

A company consolidates multiple data centers into a single centralized datacenter by using a
Windows Server 2012 R2 server that has the Hyper-V role installed.
You must be able to support chargeback based on the usage of the following resources:
average CPU usage per virtual machine (VM)
average physical memory used by a VM over a period of time
highest amount of memory assigned to a VM over a period of time
highest amount of disk spaced assigned to a VM over a period of time
You need to track the resources without installing any additional tools.
Which tool should you use?

DRAG DROP
You administer a Windows Server 2012 R2 server that has the Hyper-V role installed.

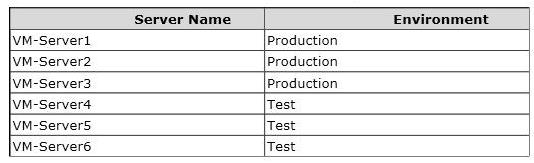

You have the following virtual machines (VMs):

You also have the following two switches:

VM-Server1 has network connectivity to VM-Server2 and VM-Server3, as well as the host server,
VM-Server4 has network connectivity to VM-Server5, but NOT to the host server.

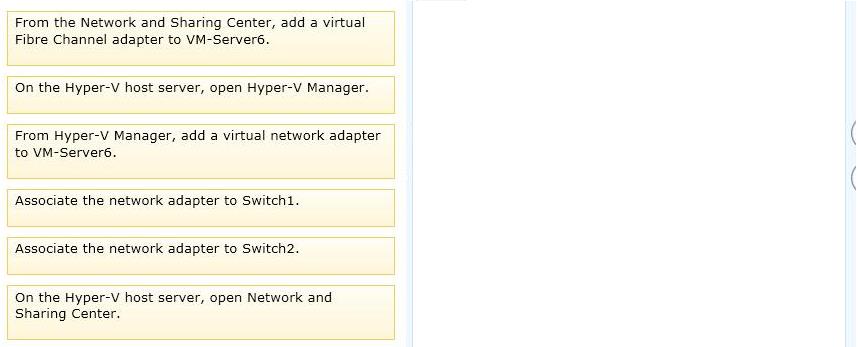

You need to configure VM-Server6 to ensure that VM-Server6 has network connectivity only to the
other test VMs. Which three actions should you perform in sequence? To answer, move the
appropriate actions from the list of actions to the answer area and arrange them in the correct
order,

A company has a Windows Server 2012 R2 Hyper-V host server named NYC-HOST1 that hosts a
virtual machine (VM) named NYC-VM1. A critical security update must be applied immediately to
NYC-VM1. There is no time to test the update before deployment. You must minimize the amount of
time needed to restore the VM. You need to capture the state of NYC-VM1 before you install the
critical security update. What should you do?

You administer a Windows Server 2012 R2 Hyper-V host server that contains production and test
virtual machines (VMs). You plan to optimize the performance of the VMs.
The following settings must be applied to the VMs:
You must set a maximum value for the input/output operations per second (IOPS) on the test VMs.
You must set a minimum value for the IOPS on the production VMs.
You need to configure the environment. What should you do?

A company has a Windows Server 2012 R2 server that has the Hyper-V role installed. The server has
a single processor and a single 10-gigabit network interface card (NIC). 12 virtual machines (VMs) run
on the server.
You need to configure Hyper-V to allow higher network throughput and reduce processing overhead
related to network operations. What should you do?

DRAG DROP
You administer a Hyper-V environment that uses Windows Server 2012 R2 and System Center 2012
R2 Virtual Machine Manager (VMM).
A line-of-business (LOB) application requires two virtual machines (VMs). Each VM must have direct
access to existing Fibre Channel storage.
You need to ensure that the two VMs have direct access to Fibre Channel storage.
Which three actions should you perform in sequence? To answer, move the appropriate actions
from the list of actions to the answer area and arrange them in the correct order.

DRAG DROP
You administer a Windows Server 2012 R2 server with the Hyper-V role installed.
You plan to integrate the Hyper-V host server with the existing storage infrastructure.
You need to configure all virtual machines (VMs).
Which three actions should you perform in sequence? To answer, move the appropriate actions
from the list of actions to the answer area and arrange them in the correct order.

You administer an environment that uses a Windows Server 2012 R2 Hyper-V cluster and System
Center 2012 R2 Virtual Machine Manager (VMM). You plan to deploy two virtual machines (VMs)
that host a line-of-business (LOS) application.
The VMs must reside on the same Hyper-V host server at all times. The LOB application does NOT
require high availability.
You need to deploy the VMs.
What should you do?

You administer two Windows 2012 R2 servers that have the Hyper-V role installed. You plan to
deploy a new Hyper-V cluster. The cluster instance must NOT be added to Active Directory. You need
to deploy the cluster. What should you do?
