You manage an Azure virtual network that hosts 15 virtual machines (VMs) on a single subnet, which is used
for testing a line of business (LOB) application. The application is deployed to a VM named
TestWebServiceVM.
You need to ensure that TestWebServiceVM always starts by using the same IP address. You need to achieve
this goal by using the least amount of administrative effort.
What should you do?

DRAG DROP
You plan to deploy a cloud service named contosoapp that has a web role named contosoweb and a worker
role named contosoimagepurge.
You need to ensure the service meets the following requirements:
Contosoweb can be accessed over the Internet by using http.
Contosoimagepurge can only be accessed through tcp port 5001 from contosoweb.
Contosoimagepurge cannot be accessed directly over the Internet.
Which configuration should you use? To answer, drag the appropriate configuration setting to the correct
location in the service configuration file. Each configuration setting may be used once, more than once, or not
at all. You may need to drag the split bar between panes or scroll to view content.
Select and Place:

Your company network includes two branch offices. Users at the company access internal virtual machines
(VMs).
You want to ensure secure communications between the branch offices and the internal VMs and network.
You need to create a site-to-site VPN connection.
What are two possible ways to achieve this goal? Each correct answer presents a complete solution.

You manage a cloud service on two instances. The service name is Service1 and the role name is
ServiceRole1.
Service1 has performance issues during heavy traffic periods.
You need to increase the existing deployment of Service1 to three instances.
Which Power Shell cmdlet should you use?

You manage a cloud service that hosts a customer-facing application. The application allows users to upload
images and create collages. The cloud service is running in two medium instances and utilizes Azure Queue
storage for image processing. The storage account is configured to be locally redundant.
The sales department plans to send a newsletter to potential clients. As a result, you expect a significant
increase in global traffic.
You need to recommend a solution that meets the following requirements:
Configure the cloud service to ensure the application is responsive to the traffic increase.
Minimize hosting and administration costs.
What are two possible ways to achieve this goal? Each correct answer presents a complete solution.

You manage a web application published to Azure Cloud Services.
Your service level agreement (SLA) requires that you are notified in the event of poor performance from
customer locations in the US, Asia, and Europe.
You need to configure the Azure Management Portal to notify you when the SLA performance targets are not
met.
What should you do?

DRAG DROP
You plan to deploy a cloud service named contosoapp. The service includes a web role namedcontosowebrole. The web role has an endpoint named restrictedEndpoint.
You need to allow access to restricted Endpoint only from your office machine using the IP address
145.34.67.82.
Which values should you use within the service configuration file? To answer, drag the appropriate value to the
correct location in the service configuration file. Each value may be used once, more than once, or not at all.
You may need to drag the split bar between panes or scroll to view content.
Select and Place:

You manage a cloud service that utilizes an Azure Service Bus queue.
You need to ensure that messages that are never consumed are retained.
What should you do?

HOTSPOT
You manage two cloud services named Service1 and Service2. The development team updates the code for
each application and notifies you that the services are packaged and ready for deployment.

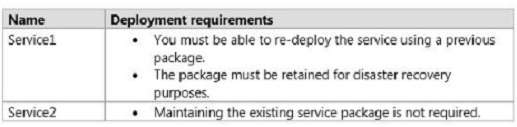

Each cloud service has specific requirements for deployment according to the following table.

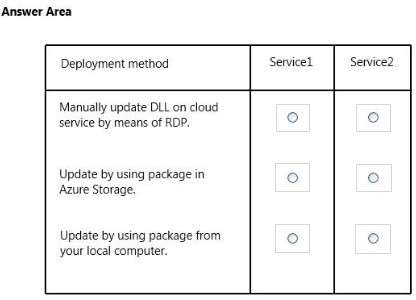

In the table below, identify the deployment method for each service. Make only one selection in each column.
Hot Area:

You administer a cloud service.
You plan to host two web applications named contosoweb and contosowebsupport.
You need to ensure that you can host both applications and qualify for the Azure Service Level Agreement. You
want to achieve this goal while minimizing costs.
How should you host both applications?
