Your network contains an Active Directory domain named contoso.com. The domain contains a
member server named HVServer1. HVServer1 runs Windows Server 2012 R2 and has the Hyper-V
server role installed.
HVServer1 hosts two virtual machines named Server1 and Server2. Both virtual machines connect to
a virtual switch named Switch1.
On Server2, you install a network monitoring application named App1.
You need to capture all of the inbound and outbound traffic to Server1 by using App1.
Which two commands should you run from Windows PowerShell? (Each correct answer presents
part of the solution. Choose two.)

Your network contains two Hyper-V hosts named Host1 and Host2. Host1 contains a virtual machine
named VM1. Host2 contains a virtual machine named VM2. VM1 and VM2 run Windows Server 2012
R2.
You install the Network Load Balancing feature on VM1 and VM2.
You need to ensure that the virtual machines are configured to support Network Load Balancing
(NLB).
Which virtual machine settings should you configure on VM1 and VM2?

You have a server named Server1 that runs Windows Server 2012 R2. Server1 has the Hyper-V server
role installed. Server1 has 8 GB of RAM.
Server1 hosts five virtual machines that run Windows Server 2012 R2.

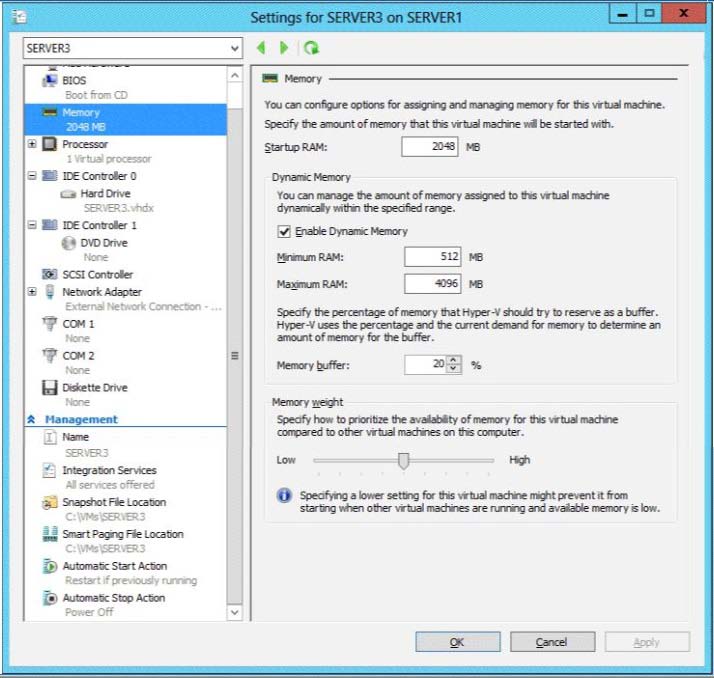

The settings of a virtual machine named Server3 are configured as shown in the exhibit. (Click the
Exhibit button.)

You need to ensure that when Server1 restarts, Server3 automatically resumes without intervention.
The solution must prevent data loss.
Which settings should you modify?

Your network contains an Active Directory domain named contoso.com. The domain contains a
member server named Server 1. Server1 runs Windows Server 2012 R2 and has the Hyper-V server
role installed.
You create an external virtual switch named Switch1. Switch1 has the following configurations:
Connection type: External network
Single-root I/O virtualization (SR-IOV): Enabled
Ten virtual machines connect to Switch1.
You need to ensure that all of the virtual machines that connect to Switch1 are isolated from the
external network and can connect to each other only. The solution must minimize network
downtime for the virtual machines.
What should you do?

Your network contains an Active Directory domain named contoso.com. The domain contains a
server named Server1 that runs Windows Server 2012 R2. Server1 has the Hyper-V server role
installed. The domain contains a virtual machine named VM1.
A developer wants to attach a debugger to VM1.
You need to ensure that the developer can connect to VM1 by using a named pipe.
Which virtual machine setting should you configure?

You have a server named Server1 that runs Windows Server 2012 R2.
Server1 has three physical network adapters named NIC1, NIC2, and NIC3.

On Server1, you create a NIC team named Team1 by using NIC1 and NIC2. You configure Team1 to
accept network traffic on VLAN 10.
You need to ensure that Server1 can accept network traffic on VLAN 10 and VLAN 11. The solution
must ensure that the network traffic can be received on both VLANs if a network adapter fails.
What should you do?

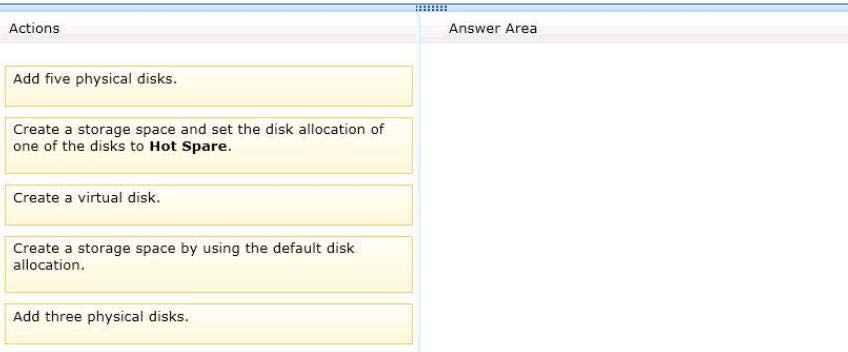

DRAG DROP
You have a server that runs Windows Server 2012 R2.
You need to create a volume that will remain online if two disks in the volume fail. The solution must
minimize the number of disks used to create the volume.
Which three actions should you perform in sequence? (To answer, move the appropriate three
actions from the list of actions to the answer area and arrange them in the correct order.)

Your network contains an Active Directory domain named contoso.com.
You install Windows Server 2012 R2 on a new server named Server1 and you join Server1 to the
domain.
You need to ensure that you can view processor usage and memory usage information in Server
Manager.
What should you do?

HOTSPOT
Your network contains two servers named Server1 and Server2 that run Windows Server 2012 R2.
Server1 has the Hyper-V server role installed. Server2 has the Windows Deployment Services server
role installed.
On Server1, you have a virtual machine named VM1.
You plan to deploy an image to VM1 by using Windows Deployment Services (WDS).
You need to ensure that VM1 can connect to Server1 by using PXE.
Which settings should you configure on VM1?To answer, select the appropriate settings in the
answer area.

Your network contains an Active Directory domain named contoso.com. The domain contains a
member server named HVServer1. HVServer1 runs Windows Server 2012 R2 and has the Hyper-V
server role installed.
HVServer1 hosts 10 generation 1 virtual machines. All of the virtual machines connect to a virtual
switch named Switch1. Switch1 is configured as a private network. All of the virtual machines have
the DHCP guard and the router guard settings enabled.
You install the DHCP server role on a virtual machine named Server1. You authorize Server1 as a
DHCP server in contoso.com. You create an IP scope.
You discover that the virtual machines connected to Switch1 do not receive IP settings from Server1.

You need to ensure that the virtual machines can use Server1 as a DHCP server.
What should you do?
