DRAG DROP
Your network contains an Active Directory forest named corp.contoso.com. All servers run
Windows Server 2012.
The network has a perimeter network that contains servers that are accessed from the
Internet by using the contoso.com namespace.
The network contains four DNS servers. The servers are configured as shown in the following table.

All of the client computers on the perimeter network use Server1 and Server2 for name
resolution.
You plan to add DNS servers to the corp.contoso.com domain.
You need to ensure that the client computers automatically use the additional name servers.
The solution must ensure that only computers on the perimeter network can resolve names
in the corp.contoso.com domain.
Which DNS configuration should you implement on Server1 and Server2?
To answer, drag the appropriate DNS configuration to the correct location in the answer
area. Each DNS configuration may be used once, more than once, or not at all. Additionally,
you may need to drag the split bar between panes or scroll to view content.

DRAG DROP
Your network contains an Active Directory domain named contoso.com. The domain
contains an IP Address Management (IPAM) server.

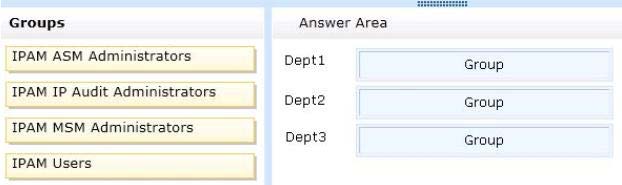

You plan to delegate the administration of IPAM as shown in the following table.

You need to recommend which IPAM security group must be used for each department. The
solution must minimize the number of permissions assigned to each group.
What should you recommend?
To answer, drag the appropriate group to the correct department in the answer area. Each
group may be used once, more than once, or not at all. Additionally, you may need to drag
the split bar between panes or scroll to view content.

HOTSPOT
You run the ldifde command and receive the following output:

The command completes successfully.
Use the drop-down menus to select the answer choice that completes each statement.

Your network contains 50 servers that run Windows Server 2003 and 50 servers that run
Windows Server 2008.

You plan to implement Windows Server 2012.
You need to create a report that includes the following information:
The servers that run applications and services that can be moved to Windows Server 2012
The servers that have hardware that can run Windows Server 2012
The servers that are suitable to be converted to virtual machines hosted on Hyper-V hosts
that run Windows Server 2012
What should you do?

DRAG DROP
Your network contains three servers named Server1, Server2, and Server3 that run
Windows Server 2012. Server3 is connected to a disk storage array.
You need to ensure that Server1 can store files on the storage array. The solution must
ensure that Server1 can access the storage as a local disk.
What should you configure on each server?
To answer, drag the appropriate configuration to the correct location in the answer area.
Each configuration may be used once, more than once, or not at all. Additionally, you may
need to drag the split bar between panes or scroll to view content.

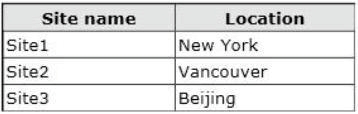

Your network contains an Active Directory domain named contoso.com. The domain
contains three Active Directory sites. The Active Directory sites are configured as shown in
the following table.

The sites connect to each other by using the site links shown in the following table.

Site link name Connected sites
You need to design the Active Directory site topology to meet the following requirements:

Ensure that all replication traffic between Site2 and Site3 replicates through Site1 if a domain
controller in Site1 is available.
Ensure that the domain controllers between Site2 and Site3 can replicate if all of the domain
controllers in Site1 are unavailable.
What should you do?

DRAG DROP
Your network contains an Active Directory domain named contoso.com. The domain
contains two domain controllers named DC1 and DC2 that run Windows Server 2008 R2.
You plan to replace the domain controllers with new servers that run Windows Server 2012.
The new servers will be named DC3 and DC4.

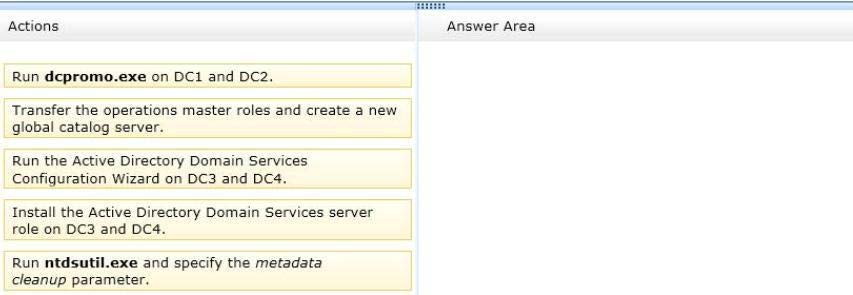

You need to recommend a strategy to replace DC1 and DC2 with DC3 and DC4. The
solution must minimize the amount of disruption to the users.
Which three actions should you recommend?
To answer, move the appropriate three actions from the list of actions to the answer area
and arrange them in the correct order.

DRAG DROP
###BeginCaseStudy###
Case Study: 2
Proseware, Inc
Overview
General Overview
Proseware, Inc. is a pharmaceutical services company that has a sales department, a
marketing department, an operations department, and a human resources department.

Physical Locations
Proseware has two main offices. One of the offices is located in New York. The other office
is located in Chicago. The New York office uses a 172.16.1.0/24 network ID. The Chicago
office uses a 192.168.1.0/24 network ID.
The offices connect to each other by using a high-bandwidth, low-latency WAN link. Each
office connects directly to the Internet.
Existing Environment
The network contains an Active Directory forest named proseware.com. The forest contains
two domains named proseware.com and chicago.proseware.com. All of the user accounts and
the computer accounts in the New York office reside in the proseware.com domain. All of the
user accounts and the computer accounts in the Chicago office reside in the
chicago.proseware.com domain. All DNS zones are Active-Directory-integrated.
Each office is configured as an Active Directory site. The network ID for each office is
associated to the appropriate site.
Each office contains two domain controllers. The domain controllers were recently upgraded
from Windows Server 2008 R2 to Windows Server 2012 R2. The functional level of the
domain and the forest is Windows Server 2003.
The company uses Active Directory user attributes to store the personal information of its
employees in custom attributes.
Existing Servers
The relevant servers are configured as shown in the following table.

All servers run Windows Server 2012 R2.

DC01 has an IPv4 scope. The starting IP address in the range is 172.16.1.100 and the ending
address is 172.16.1.199.
DC03 has an IP4v scope. The starting IP address in the range is 192.168.1.100 and the ending
IP address is 192.168.1.199. There are no exclusion ranges configured on DC01 or DC03.
Requirements
Planned Changes
Proseware plans to implement the following changes:
• Deploy a read-only domain controller (RODC) to the London office.
• Give users remote access to both offices by using a VPN connection from their laptop
or tablet.
• If DC01 fails, ensure that the computers in the New York office can receive IP
addresses within 30 minutes.
• In the New York site, deploy two 50-TB, Fibre Channel SAN disk arrays. Offloaded
Data Transfer (ODX) will be used on both storage arrays. The Hyper-V hosts will use the
new SANs for virtual machine storage.
• Open three additional offices in Montreal, Atlanta, and London. The offices will
connect to each other by using a high-bandwidth, low-latency WAN link. Each office will
connect directly to the Internet.
• For legal reasons, the Montreal site will have its own forest named
montreal.proseware.com.
• The Montreal and Atlanta offices will have local IT administrators to manage the
network infrastructure of their respective office. The London office will not have a local IT
staff. Each office will have approximately 50 client computers.
Technical Requirements
Proseware identifies the following technical requirements:
• Users in the Montreal office must only be allowed to access shares that are located on
File01 and File02. The Montreal users must be prevented from accessing any other servers in
the proseware.com forest regardless of the permissions on the resources,
• Users in the New York office must be able to reconnect to the remote access VPN
servers automatically. Users in the Chicago office must use SSL to connect to the remote
access VPN servers.
• Domain controllers that run Windows Server 2012 R2 and Windows Server 2008 R2
must be able to be deployed to the proseware.com domain.
• Administrators in the New York office must be able to restore objects from the Active
Directory Recycle Bin.
• The DNS servers must be prevented from overwriting the existing DNS entries that
have been stored in cache.
• Each DNS server must be managed by an administrator from the same office as the
DNS server.
• The required time to create new fixed virtual hard disks (VHDs) on the SANs must be
minimized.

• The remote access servers must be able to restrict outgoing traffic based on IP
addresses.
• All certificates must be deployed to all of the client computers by using autoenrollment.
• All of the DHCP Server server roles must be installed on a domain controller.
• Only one DHCP server in each site must lease IP addresses at any given time.
• DHCP traffic must not cross site boundaries.
• RODCs must not contain personal user information.
###EndCaseStudy###

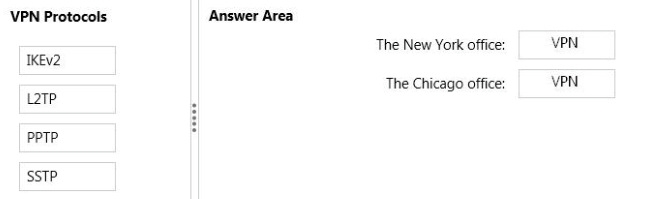

You need to recommend the VPN protocols for Proseware.
What should you recommend? To answer, drag the appropriate VPN protocols to the correct
offices. Each protocol may be used once, more than once, or not at all. You may need to
drag the split bar between panes or scroll to view content,

DRAG DROP
###BeginCaseStudy###
Case Study: 2
Proseware, Inc
Overview
General Overview
Proseware, Inc. is a pharmaceutical services company that has a sales department, a
marketing department, an operations department, and a human resources department.

Physical Locations
Proseware has two main offices. One of the offices is located in New York. The other office
is located in Chicago. The New York office uses a 172.16.1.0/24 network ID. The Chicago
office uses a 192.168.1.0/24 network ID.
The offices connect to each other by using a high-bandwidth, low-latency WAN link. Each
office connects directly to the Internet.
Existing Environment
The network contains an Active Directory forest named proseware.com. The forest contains
two domains named proseware.com and chicago.proseware.com. All of the user accounts and
the computer accounts in the New York office reside in the proseware.com domain. All of the
user accounts and the computer accounts in the Chicago office reside in the
chicago.proseware.com domain. All DNS zones are Active-Directory-integrated.
Each office is configured as an Active Directory site. The network ID for each office is
associated to the appropriate site.
Each office contains two domain controllers. The domain controllers were recently upgraded
from Windows Server 2008 R2 to Windows Server 2012 R2. The functional level of the
domain and the forest is Windows Server 2003.
The company uses Active Directory user attributes to store the personal information of its
employees in custom attributes.
Existing Servers
The relevant servers are configured as shown in the following table.

All servers run Windows Server 2012 R2.

DC01 has an IPv4 scope. The starting IP address in the range is 172.16.1.100 and the ending
address is 172.16.1.199.
DC03 has an IP4v scope. The starting IP address in the range is 192.168.1.100 and the ending
IP address is 192.168.1.199. There are no exclusion ranges configured on DC01 or DC03.
Requirements
Planned Changes
Proseware plans to implement the following changes:
• Deploy a read-only domain controller (RODC) to the London office.
• Give users remote access to both offices by using a VPN connection from their laptop
or tablet.
• If DC01 fails, ensure that the computers in the New York office can receive IP
addresses within 30 minutes.
• In the New York site, deploy two 50-TB, Fibre Channel SAN disk arrays. Offloaded
Data Transfer (ODX) will be used on both storage arrays. The Hyper-V hosts will use the
new SANs for virtual machine storage.
• Open three additional offices in Montreal, Atlanta, and London. The offices will
connect to each other by using a high-bandwidth, low-latency WAN link. Each office will
connect directly to the Internet.
• For legal reasons, the Montreal site will have its own forest named
montreal.proseware.com.
• The Montreal and Atlanta offices will have local IT administrators to manage the
network infrastructure of their respective office. The London office will not have a local IT
staff. Each office will have approximately 50 client computers.
Technical Requirements
Proseware identifies the following technical requirements:
• Users in the Montreal office must only be allowed to access shares that are located on
File01 and File02. The Montreal users must be prevented from accessing any other servers in
the proseware.com forest regardless of the permissions on the resources,
• Users in the New York office must be able to reconnect to the remote access VPN
servers automatically. Users in the Chicago office must use SSL to connect to the remote
access VPN servers.
• Domain controllers that run Windows Server 2012 R2 and Windows Server 2008 R2
must be able to be deployed to the proseware.com domain.
• Administrators in the New York office must be able to restore objects from the Active
Directory Recycle Bin.
• The DNS servers must be prevented from overwriting the existing DNS entries that
have been stored in cache.
• Each DNS server must be managed by an administrator from the same office as the
DNS server.
• The required time to create new fixed virtual hard disks (VHDs) on the SANs must be
minimized.

• The remote access servers must be able to restrict outgoing traffic based on IP
addresses.
• All certificates must be deployed to all of the client computers by using autoenrollment.
• All of the DHCP Server server roles must be installed on a domain controller.
• Only one DHCP server in each site must lease IP addresses at any given time.
• DHCP traffic must not cross site boundaries.
• RODCs must not contain personal user information.
###EndCaseStudy###

You need to recommend changes for the Active Directory infrastructure.
What should you recommend? To answer, drag the appropriate domain and forest functional
levels for proseware.com to the correct locations. Each functional level may be used once,
more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.

HOTSPOT

###BeginCaseStudy###
Case Study: 4
Northwind Traders
Overview
Northwind Traders is a retail company.
The company has offices in Montreal and San Diego. The office in Montreal has 1,000 client
computers. The office in San Diego has 100 computers. The computers in the San Diego
office are often replaced. The offices connect to each other by using a slow WAN link. Each
office connects directly to the Internet.
Existing Environment
Active Directory Environment

The network contains an Active Directory forest named northwindtraders.com. The forest
contains two domains named northwindtraders.com and west.northwindtraders.com. All
servers run Windows Server 2012 R2.
All client computers run Windows 7.
Each office is configured as an Active Directory site. The site in the Montreal office is named
Site1. The site in the San Diego office is named Site2.
The forest contains four domain controllers. The domain controllers are configured as shown
in the following table.

DC1, DC2, and DC3 are writable domain controllers. R0DC1 is read-only domain controller
(RODC). All DNS zones are Active Directory-integrated. All zones replicate to all of the
domain controllers.
All of the computers in the San Diego office are configured to use RODC1 as their only DNS server.
The northwindtraders.com domain contains a Group Policy object (GPO) named GPO1.
GP01 is applied to all of the users in the Montreal office.
All of the user accounts for the Montreal users are in the northwindtraders.com domain. All
of the user accounts for the San Diego users are in the west.northwindtraders.com domain.
Network Environment
Site1 contains the member servers in the northwindtraders.com domain shown in the
following table.

Server1 connects to SAN storage that supports Offloaded Data Transfer (ODX). All virtual
hard disks (VHDs) are stored on the SAN.
A web application named App1 is installed on Servers.
Server3 has a shared folder that contains sales reports. The sales reports are read frequently
by the users in both offices. The reports are generated automatically once per week by an
enterprise resource planning (ERP) system.

A perimeter network in the Montreal office contains two standalone servers. The servers are
configured as shown in the following table.

The servers in the perimeter network are accessible from the Internet by using a domain name
suffix of public.northwindtraders.com.
Each administrator has a management computer that runs Windows 8.1.
Requirements
Planned Changes
Northwind Traders plans to implement the following changes:
On Server1, create four virtual machines that run Windows Server 2012 R2. The servers will
be configured as shown in the following table.

• Configure IP routing between Site1 and the network services that Northwind Traders
hosts in Windows Azure.
• Place a domain controller for the northwindtraders.com domain in Windows Azure.
• Upgrade all of the computers in the Montreal office to Windows 8.1.
• Purchase a subscription to Microsoft Office 365.
• Configure a web application proxy on Server6.
• Configure integration between VMM and IPAM.
• Apply GPO1 to all of the San Diego users.
• Connect Site1 to Windows Azure.
Technical Requirements
Northwind Traders must meet the following technical requirements:
• All virtual machines must use ODX.
• Users must be able to access App1 from the Internet.
• GPO1 must not be applied to computers that run Windows 8.1.
• All DNS zones must replicate only to DC1, DC2, and DC3.
• All computers must be able to resolve names by using a local DNS server.
• If a WAN link fails, users must be able to access all of the sales reports.
• The credentials for accessing Windows Azure must be permanently stored.
• The on-premises network must be connected to Windows Azure by using Server4.
• The administrators must be able to manage Windows Azure by using Windows
PowerShell.

• The number of servers and services deployed in the San Diego office must be
minimized.
• Active Directory queries for the objects in the forest must not generate WAN traffic,
whenever possible.
Security Requirements
Northwind Traders identifies the following security requirements:
• Ensure that all DNS zone data is encrypted when it is replicated.
• Minimize the number of permissions assigned to users and
administrators, whenever possible. Prevent an Active Directory Domain
Services (AD DS) attribute named SSNumber from replicating to Site2.
• Ensure that users can use their northwindtraders.com user account to
access the resources hosted in Office 365.
• Prevent administrators from being required to re-enter their credentials
when they manage Windows Azure from approved management computers.
###EndCaseStudy###

You are evaluating the virtual machine environment.
In the table below, identify which virtual machines currently support ODX and which virtual
machines require a configuration change to support ODX. Make only one selection in each row.
