CORRECT TEXT
Scenario: The Xirtic environment consists of two datacenters: Tokyo and Seoul. Servers in the
environment are categorized into worker groups: Engineering Apps and Office Productivity Apps.
There are total of four servers in the environment.
The various offices are on the following subnets:
Tokyo
192.168.1.0/24
Seoul
172.16.1.0/24
The XenApp servers can be accesses internally or externally using the following FQDNs:
Information about application access and usage:
Engineering users need access to the Design Project application.
Engineering users must access the application through Web interface while on the corporate
network and from remote locations.
Engineering users access both published and streamed applications.
Information about security:
A corporate policy mandates that separate sites are created Tokyo Engineering users and Seoul Engineering users.
Management also wants to address given to the client to be determined by the address
translation mappings in Web Interface.
The public domain name is Xirtic.com and the internal domain name us Xirtic.local
All server hostname are the same internally and externally.
Tasks:
As the XenApp Administrator, configure the necessary settings in the Web interface Management
Console to meet the requirements specified by the Xirtic management team.
Answer: See the explanation.
Explanation:
Here are the step by step solution to this.
Web Interface without CAG/CSG

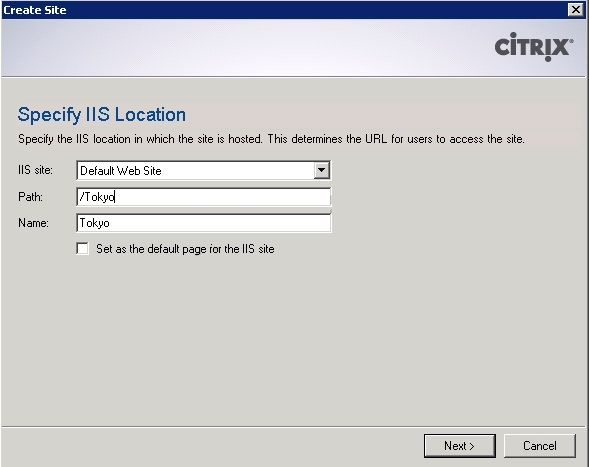

Tokyo Site (External)
Click Next

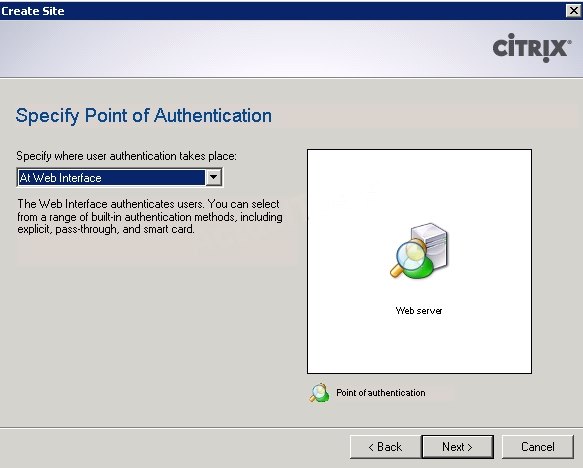

Click Next
Click Next

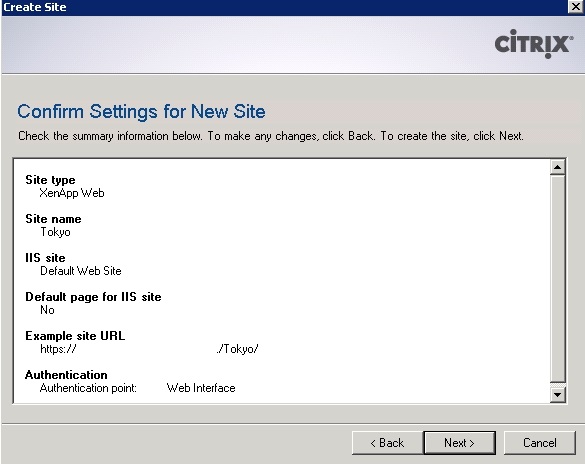

Click Next

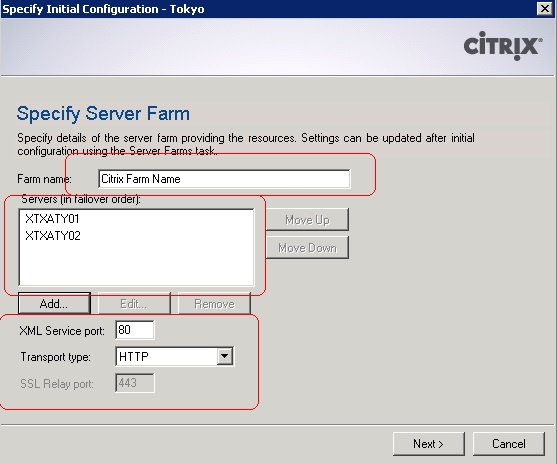

Enter Citrix Farm Name, Citrix XenApp server in Tokyo and the XML port configured
Click Next

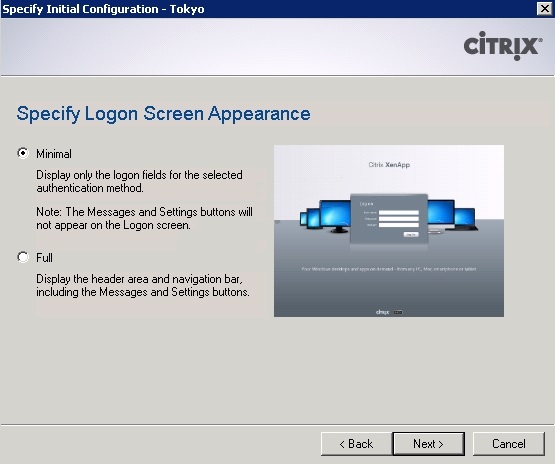

Click Next
Click Next
Click Next

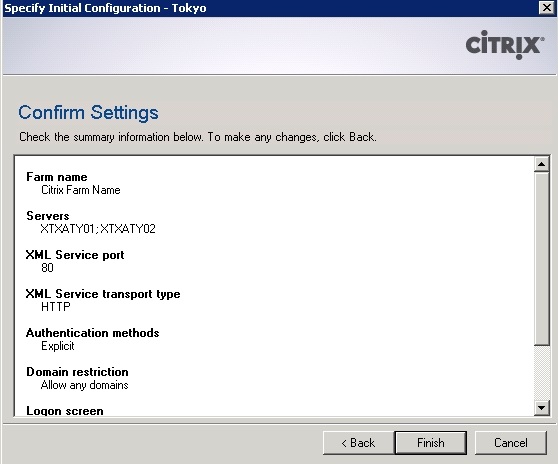

Click Finish
Configuring Access Translation on the Web Interface

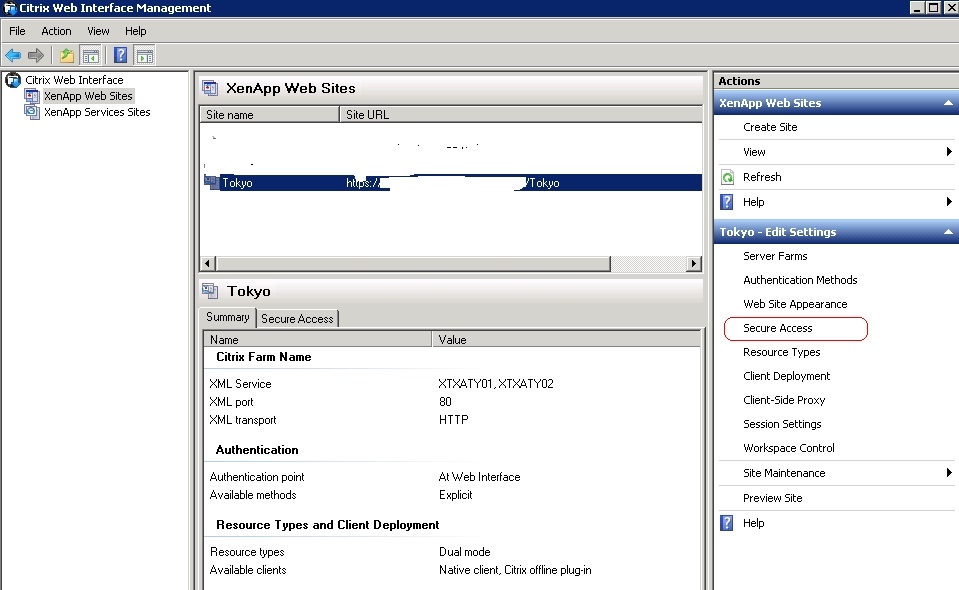

Click on Secure Access

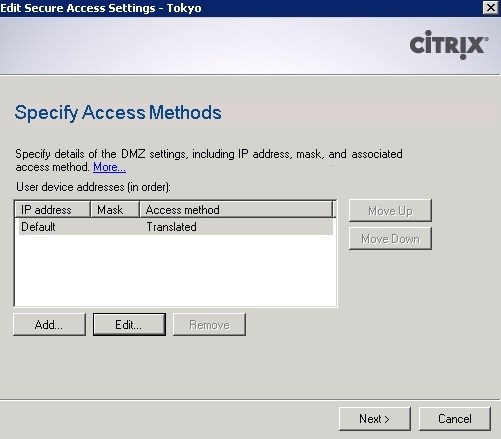

Select Translated (Translating Firewall is used)

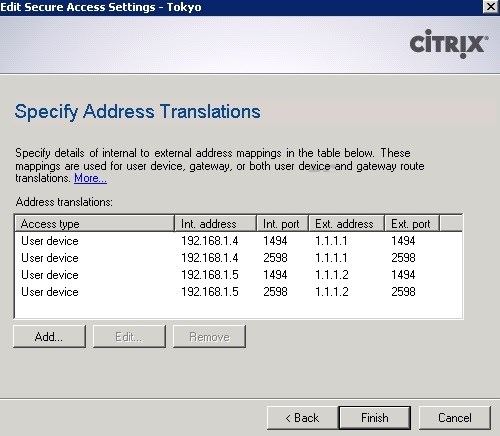

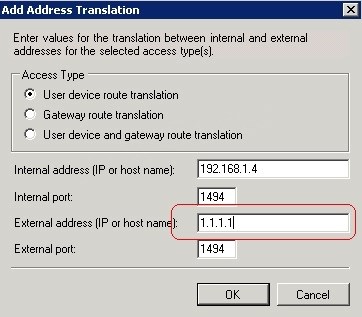

Enter the public IP that is NATted to XenApp Server (Do this step for both XenApp servers and Port 2598)
Looks like this, Click Finish
Do the same steps on Seoul Web Interface
For Internal
Websites:
Internal – http://<servername>/Tokyo-Internal and http://<servername>/Seoul-Internal
External – http://<servername>/Tokyo and http://<servername>/Seoul
