Scenario
Your organization has just implemented a Cisco AnyConnect SSL VPN solution. Using Cisco
ASDM, answer the questions regarding the implementation.
Note: Not all screens or option selections are active for this exercise.

Topology

Default_Home

Which two networks will be included in the secured VPN tunnel? (Choose two.)

A.
10.10.0.0/16

B.
All networks will be securely tunneled

C.
Networks with a source of any4

D.
10.10.9.0/24

E.
DMZ network

Explanation:

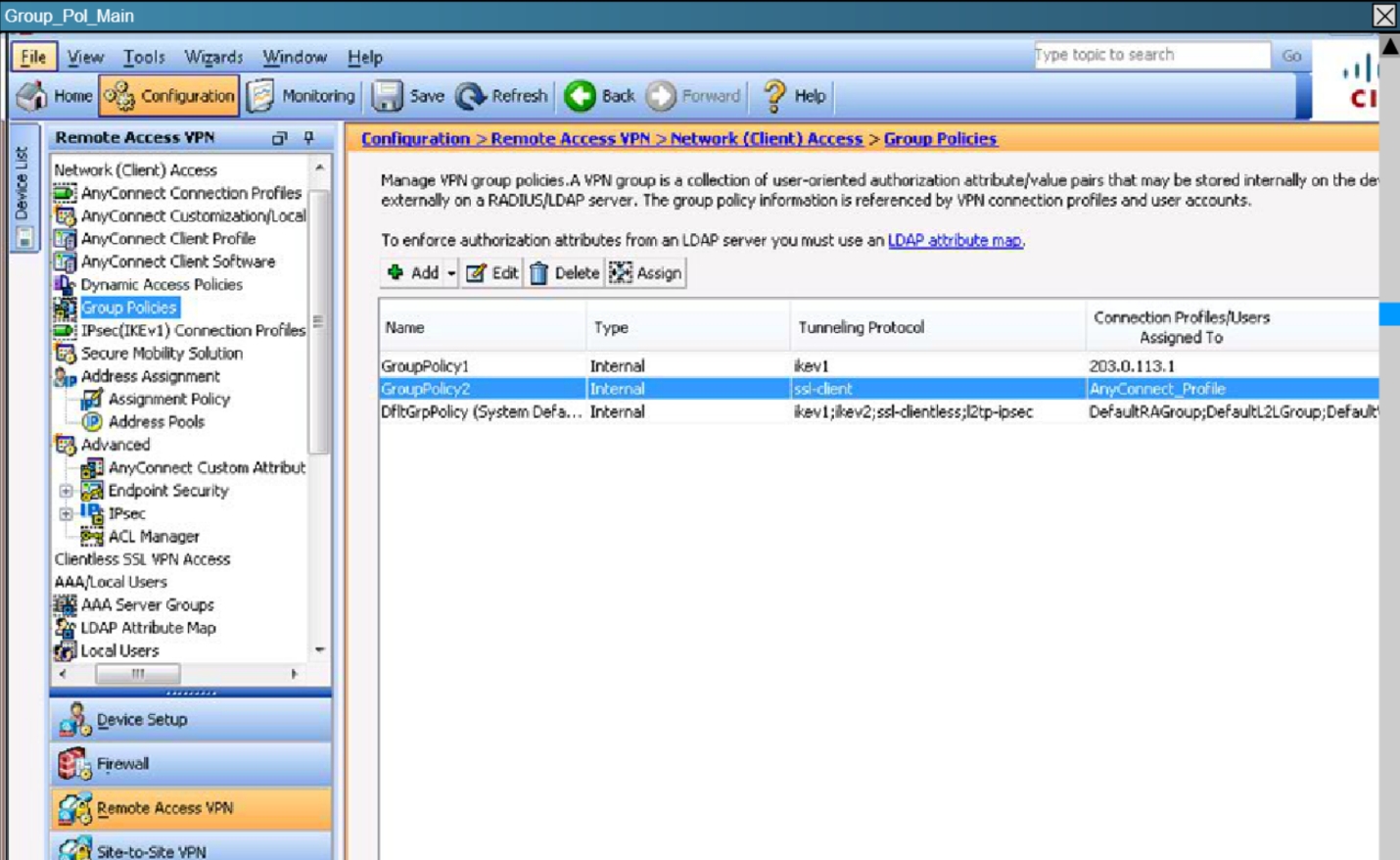

Navigate to the Configuration -> Remote Access -> Group Policies tab to observe the following:

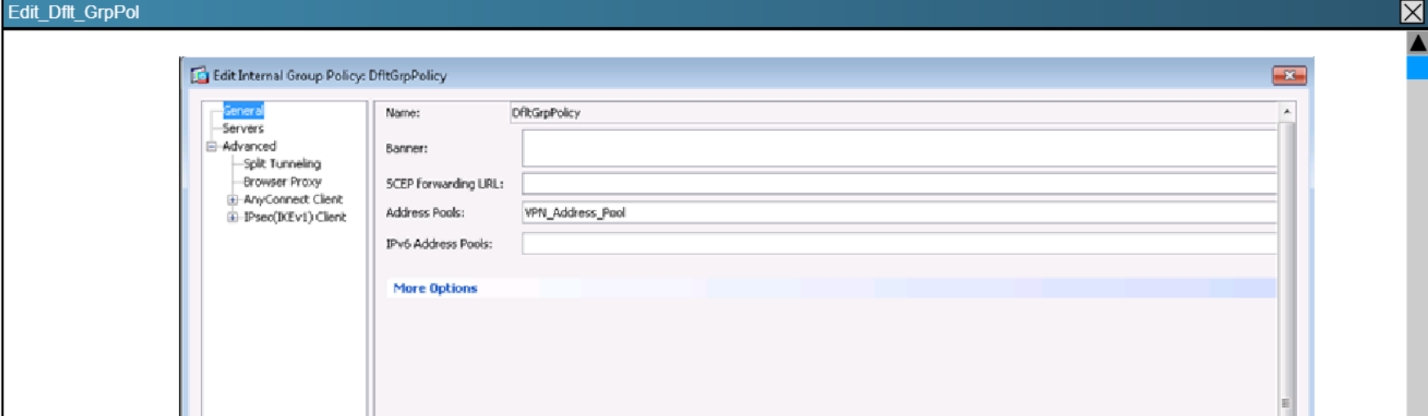

Then, click on the DlftGrpPolicy to see the following:

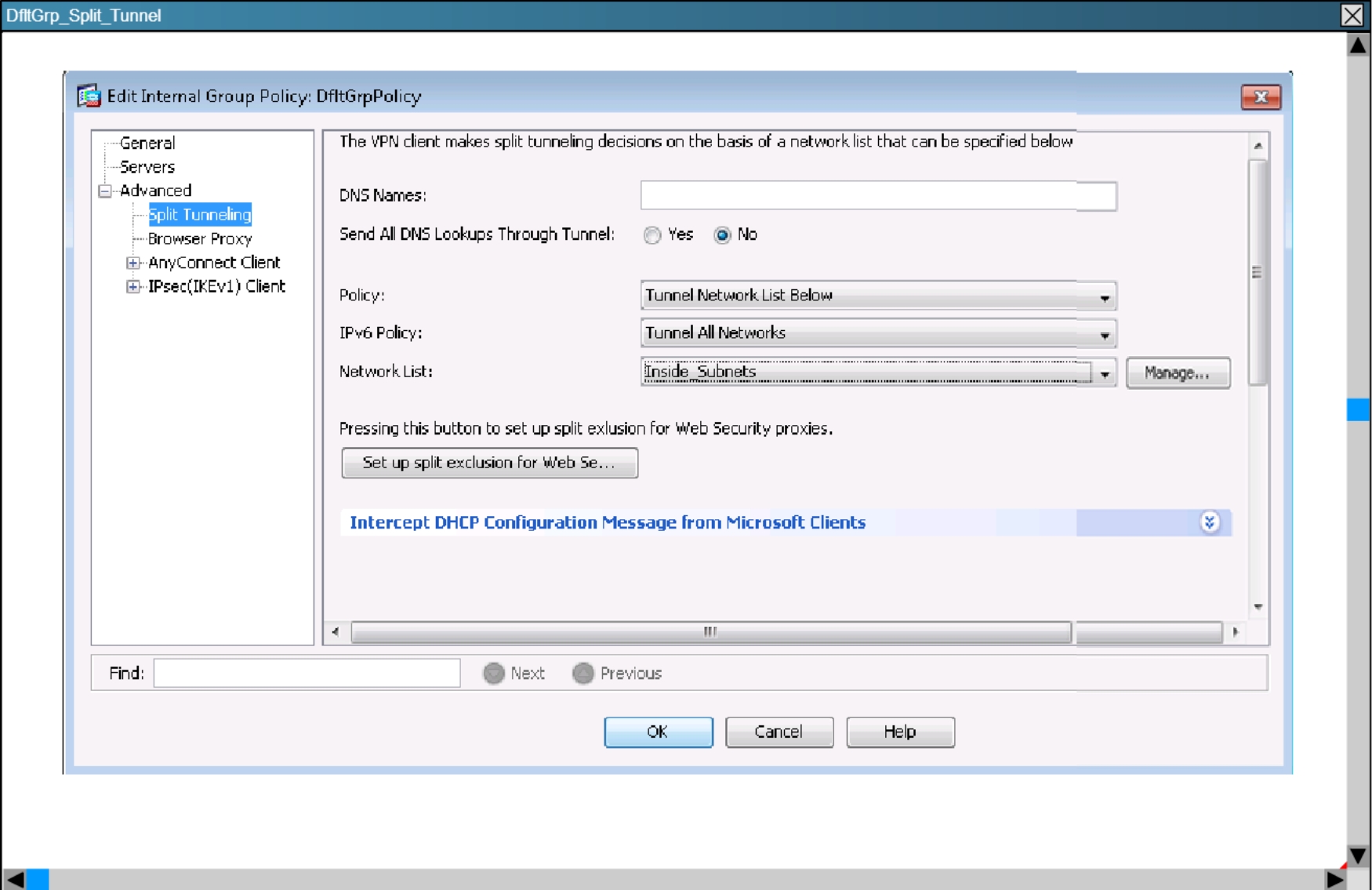

On the left side, select “Split Tunneling” to get to this page:

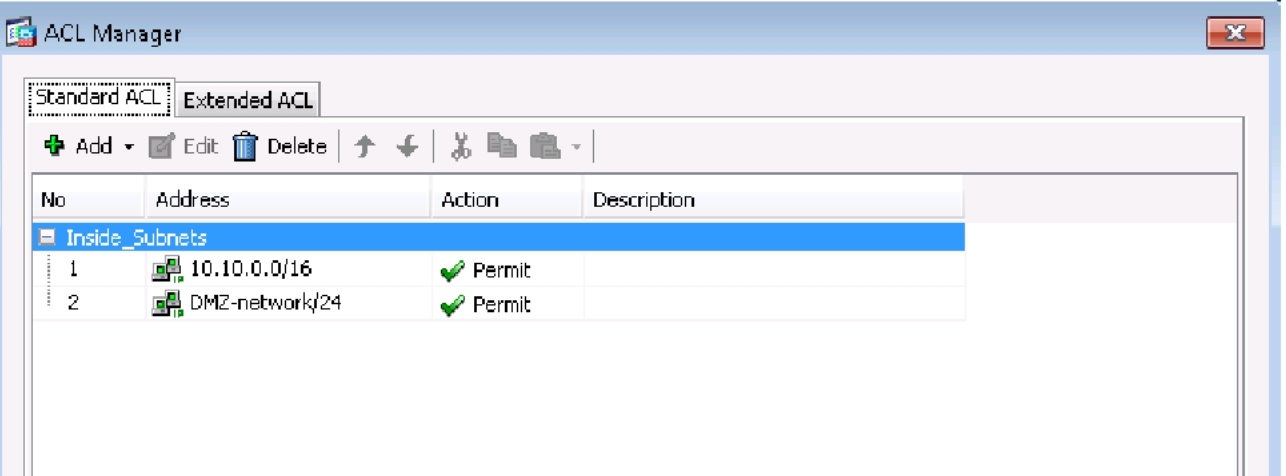

Here you see that the Network List called “Inside Subnets” is being tunneled (secured). Select
Manage to see the list of networks

Here we see that the 10.10.0.0/16 and DMZ networks are being secured over the tunnel.
