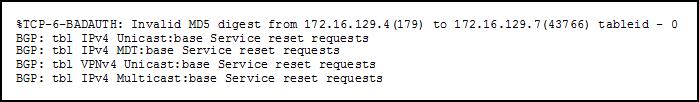

Refer to the exhibit.
Which three statements about the device with this configuration are true? (Choose three.)
A.
Multiple AFIs are configured on the device.
B.
The authentication on 172.16.129.7 is configured incorrectly.
C.
The device is configured to support MPLS VPNs.
D.
This device is configured with a single AFI.
E.
The authentication on 172.16.129.4 is configured incorrectly.
F.
The device is configured to support L2VPNs.
A, B, & C are correct.
0
0
I only see one AFI – that is IPv4. The SAFIs are IPv4 unicast, multicast, MDT and MPLS VPN.
0
0
B or E since there is NO way to determine which peer has the incorrect password.
the error states from .4 [my peer] to .7 [me]
0
0
Agree, with U
0
0
whos to say which side has the authentication configured incorrectly? It doesn’t list the device configurations and it doesn’t tell you what the intended authentication is supposed to be.
