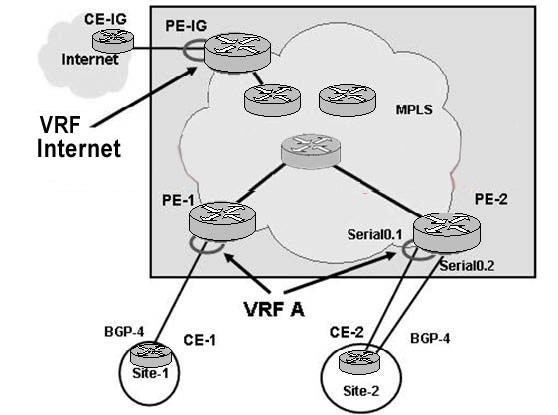

Refer to the exhibit.
In the case of Internet access through a dedicated sub-interface implementation, which routing table will PE-2 use to forward packets from Site-2 to the Internet?
A.
Global routing table
B.
VPNv4 routing table
C.
VRF A routing table
D.
CE-2 routing table
E.
PE-IG routing table
Explanation:
VRF A routing table is used for routing between site-1 and site-2 as they are both members of VRF A.
There is a mistake between image and question, if they are using “sub-interface implementation”, it will use global routing table, VPNv4 routing table is when they are using a VPN for internet traffic.
0
0
Yes, the image is wrong
