Scenario
Your organization has just implemented a Cisco AnyConnect SSL VPN solution. Using Cisco
ASDM, answer the questions regarding the implementation.
Note: Not all screens or option selections are active for this exercise.

Topology

Default_Home

Which address range will be assigned to the AnyConnect users?

A.
10.10.15.40-50/24

B.
209.165.201.20-30/24

C.
192.168.1.100-150/24

D.
10.10.15.20-30/24

Explanation:

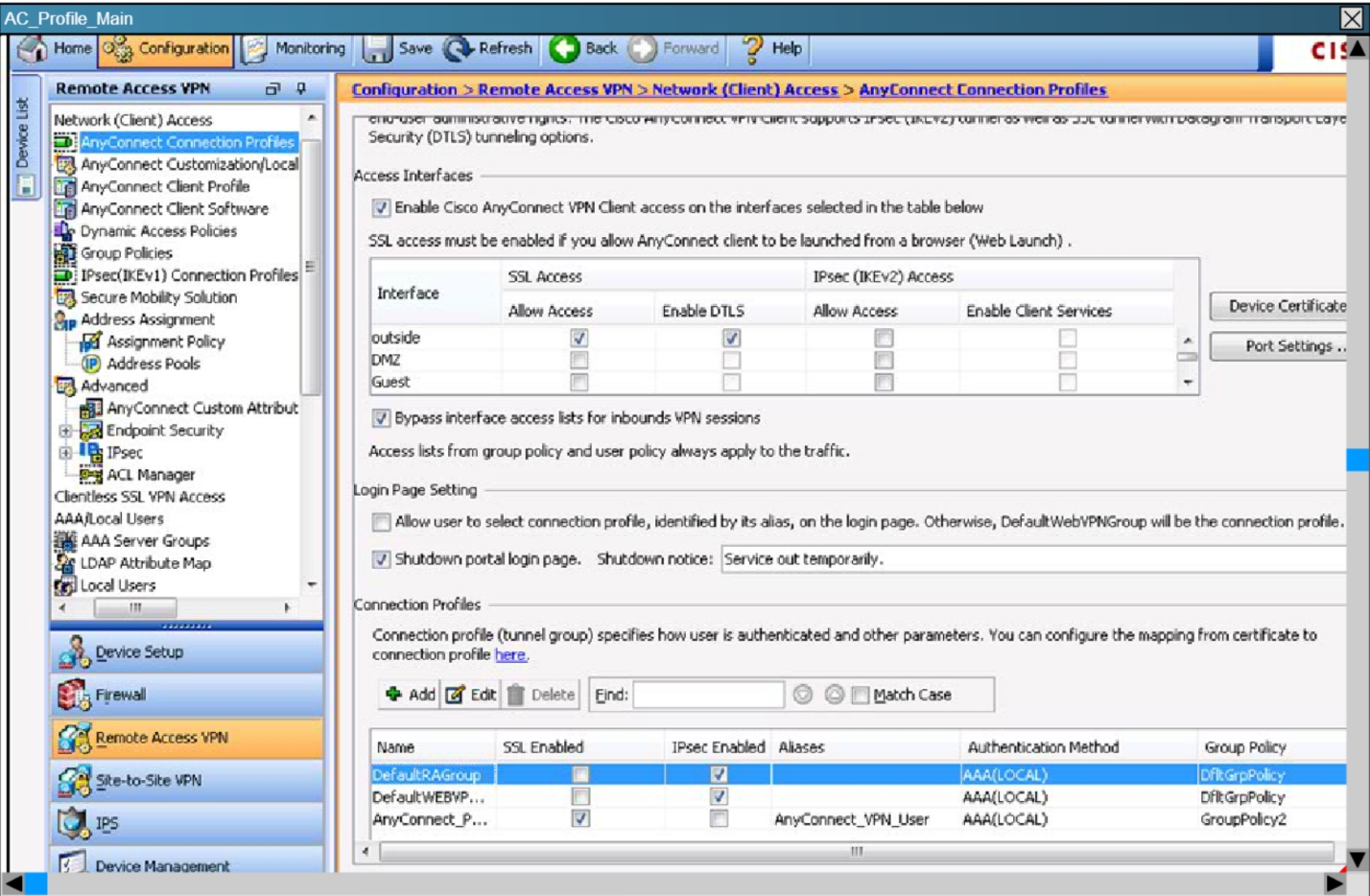

First Navigate to the Configuration -> Remote Access VPN tab and then choose the
“AnyConnect Connection Profile as shown below:

Then, clicking on the AnyConnect Profile at the bottom will bring you to the edit page shown
below:

From here, click the Select button on the “VPN_Address_Pool” and you will see the following
pools defined:

Here we see that the VPN_Address_Pool contains the IP address range of 10.10.15.20-
10.10.15.30/24.
