A customer network engineer has made configuration changes that have resulted in some loss of
connectivity. You have been called in to evaluate a switch network and suggest resolutions to the
problems.
Refer to the topology.
SW1 Switch Management IP address is not pingable from SW4. What could be the issue?
A.
Management VLAN not allowed in the trunk links between SW1 and SW4
B.
Management VLAN not allowed in the trunk links between SW1 and SW2
C.
Management VLAN not allowed in the trunk link between SW2 and SW4
D.
Management VLAN ip address on SW4 is configured in wrong subnet
E.
Management VLAN interface is shutdown on SW4
Explanation:

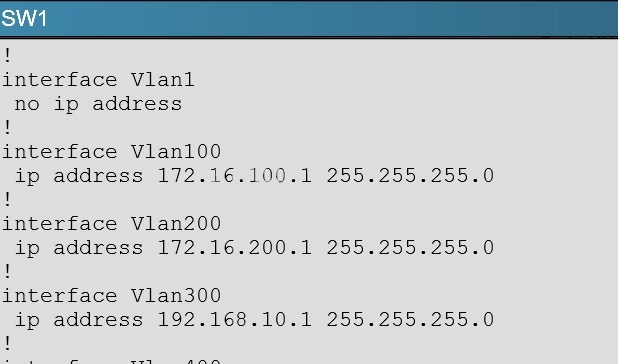

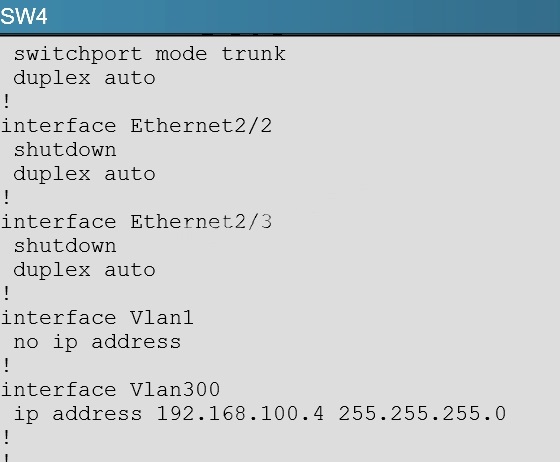

In the network, VLAN 300 is called the Management VLAN. Based on the configurations shown
below, SW1 has VLAN 300 configured with the IP address of 192.168.10.1/24, while on SW4
VLAN 300 has an IP address of 192.168.100.4/24, which is not in the same subnet.
