Scenario:
You have been brought in to troubleshoot an EIGRP network. You have resolved the initial issue
between routers R2 and R4, but another issue remains. You are to locate the problem and
suggest solution to resolve the issue.
The customer has disabled access to the show running-config command.
The network segment between R2 and R4 has become disconnected from the remainder of the
network. How should this issue be resolved?
A.
Change the autonomous system number in the remainder of the network to be consistent with
R2 and R4.
B.
Move the 192.168.24.0 network to the EIGRP 1 routing process in R2 and R4.
C.
Enable the R2 and R4 router interfaces connected to the 192.168.24.0 network.
D.
Remove the distribute-list command from the EIGRP 200 routing process in R2.
E.
Remove the distribute-list command from the EIGRP 100 routing process in R2.
Explanation:

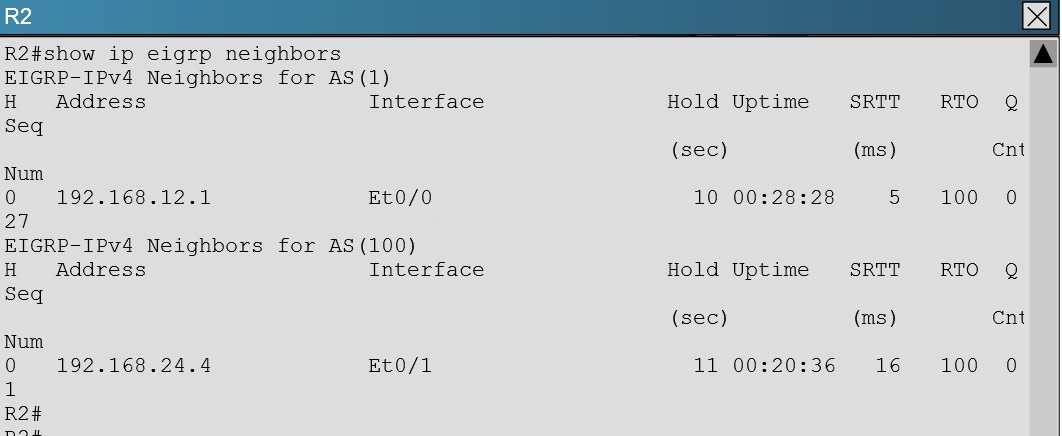

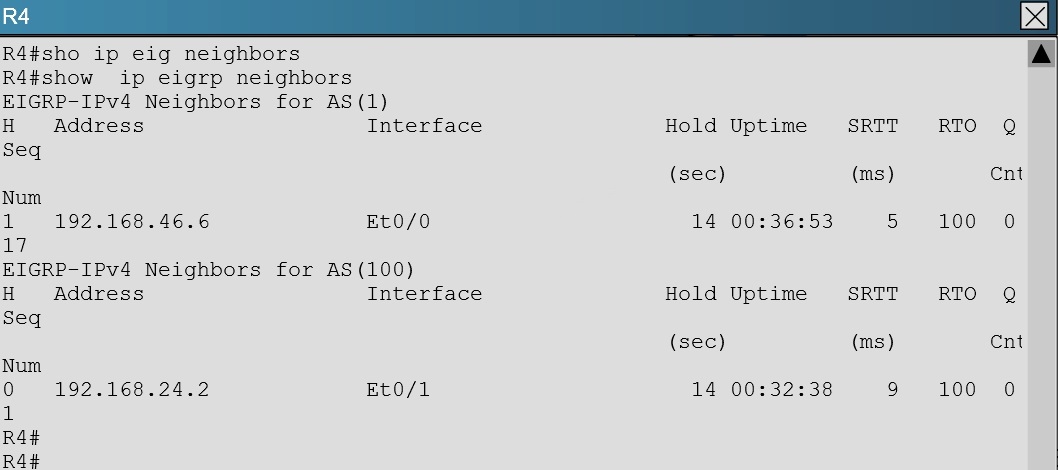

When issuing the “show ip eigrp neighbor” command (which is about the only command that it lets
you do in this question) you will see that all other routers are configured for EIGRP AS 1.
However, the 192.16824.0 network between R2 and R4 is incorrectly configured for EIGRP AS
100:
