A network administrator has an HP Comware switch that is configured with OSPF. The network
administrator views the routing table and sees that a default route was learned from an OSPF
neighbor (10.1.1.1). However, the network administrator wants to override this action and use a
different neighbor (10.1.1.2) for the default route.
The network administrator configures this command:
[Commware] ip route-static 0.0.0.0 0 10.1.1.2
After configuring the command, the network administrator examines the routing table and notices
that the original neighbor’s default route is still in the routing table, but the static route is missing.
What is the cause of this problem?

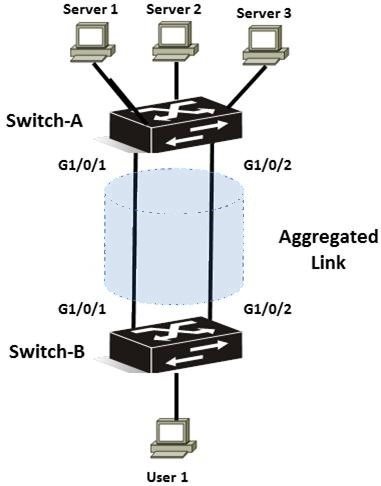

Refer to the network exhibit.

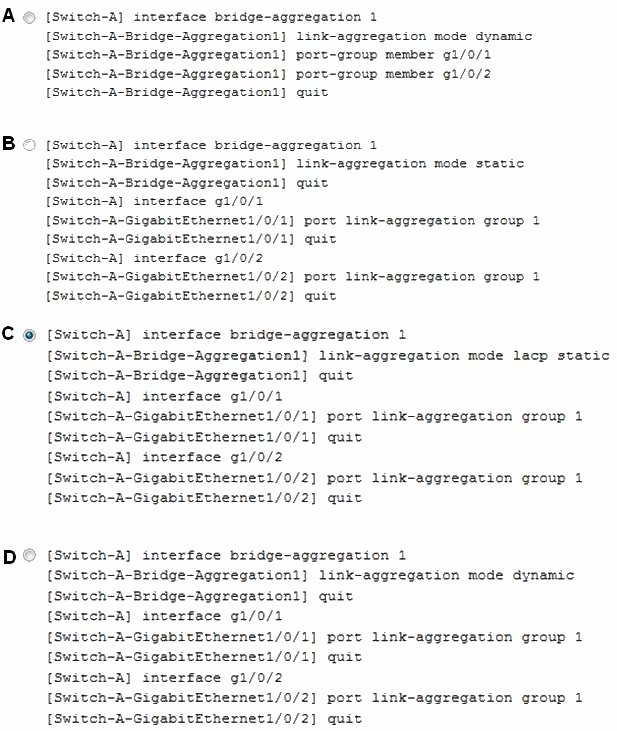

A network administrator needs to configure link aggregation using static LACP on Switch-A. Which
is an HP Comware switch. Which configuration accomplishes this goal?

What are HP Cloud Maps?

Refer to the HP Comware configuration.

The network administrator set up VLAN 2 as a management VLAN. This VLAN should not be
included in the OSPF routing process. Now only directly connected network administrators in
VLAN2 can manage the switch.

How should the network administrator solve this problem?

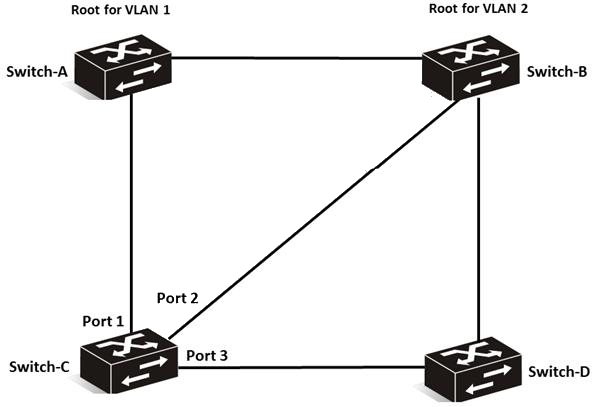

Refer to the network exhibit.

The network is running spanning tree. Examine this configuration of Switch-C:

Port 1 on Switch-C fails. Based on this topology, which statement is true?

Which Software-Defined Network (SDN) layer includes HP Provision and HP Comware switches?

A network administrator attempts to access the console port of an HP Comware switch. The
network administrator is immediately prompted for a username and password, but cannot
remember the correct account information. The network administrator then reboots the switch and
accesses the Extended BootROM menu, where this information displays:

Which option can the network administrator choose to get access to User and System Views from
the switch’s console port?

Which HP Provision switch command lists the operating system that is currently loaded?

Which HP redundancy features are supported by both HP Provision and HP Comware switches?
(Select two.)

A network administrator is examining the routing table on an HP Comware switch. The network
administrator sees two routes. 10.1.1 0/24, with the same neighbor’s address (10.1.1.1). What
would create this result?
