Which Layer 2 VPN configuration is correct for PE2?

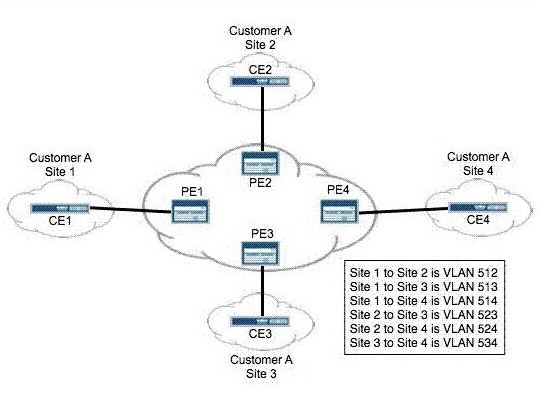

You are provisioning a full-mesh BGP Layer 2 VPN for Customer A. The customer has four remote sites in their network. Using best practices, you assigned interface unit numbers matching the assigned VLAN numbers.Which Layer 2 VPN configuration is correct for PE2?

PrepAway - Latest Free Exam Questions & Answers

A.
l2vpn { encapsulation-type ethernet-vlan; site CE2 { site-identifier 2; interface ge-0/0/0.523; interface ge-0/0/0.512; interface ge-0/0/0.524; }}

B.
l2vpn { encapsulation-type ethernet-vlan; site CE2 { site-identifier 2; interface ge-0/0/0.523; interface ge-0/0/0.524; interface ge-0/0/0.512; }}

C.
l2vpn { encapsulation-type ethernet-vlan; site CE2 { site-identifier 2; interface ge-0/0/0.512; interface ge-0/0/0.523; interface ge-0/0/0.524; }}

D.
l2vpn { encapsulation-type ethernet-vlan; site CE2 { site-identifier 2; interface ge-0/0/0.512; interface ge-0/0/0.524; interface ge-0/0/0.523; }}

2 Comments on “Which Layer 2 VPN configuration is correct for PE2?

    1. bitbyte says:

      You have to configure the different VLANs on PE2 so that the sites can interact with eachother:

      Site1 to Site2 is VLAN512
      Site2 to Site3 is VLAN523
      Site2 to Site4 is VLAN524

      Therefore c) is the correct answer.
