Click the Exhibit button.
In the exhibit, the 10.100/16 prefix is introduced at autonomous system 1 (AS1) and propagated
through to AS3. Router A in AS3 receives two different paths to these prefixes, one through AS2
and the other through AS4. No BGP attributes have been altered.
Which path would router A prefer for the 10.100/16 prefix?

— Exhibit —
[edit]
user@R1# show routing-options router-id
router-id 1.1.1.1;
[edit]
user@R1# show protocols ospf
area 0.0.0.0 {
interface ge-0/0/7.0;
}
[edit]
user@R2# show routing-options router-id
router-id 2.2.2.2;
[edit]
user@R2# show protocols ospf
area 0.0.0.0 {
interface ge-0/0/8.0 {
priority 200;
}
}
[edit]
user@R3# show routing-options router-id

router-id 222.255.255.255;
[edit]
user@R3# show protocols ospf
area 0.0.0.0 {
interface ge-0/0/8.0;
}
[edit]
user@R4# show routing-options router-id
router-id 239.255.255.255;
[edit]
user@R4# show protocols ospf
area 0.0.0.0 {
interface ge-0/0/6.0 {
priority 0;
}
}
— Exhibit —
Click the Exhibit button.
All four routers in the exhibit are in the same broadcast domain. The routers were powered on at
the same time.
Based on the configurations, which devices are the DR and the BDR

— Exhibit —
user@router> show interfaces ge-0/0/0 extensive | find “Queue counters”
Queue counters: Queued packets Transmitted packets Dropped packets
0 best-effort 35244 35244 0
1 expedited-fo 258963 59852 199111
2 assured-forw 0 0 0
3 network-cont 1625847 1625847 0
…
— Exhibit —
Click the Exhibit button.
You recently deployed an SRX Series Gateway in your network. It uses the default class of
service configuration.
Based on the output in the exhibit, what reason explains the packet drops in Queue 1?

— Exhibit —
ar 16 19:12:58.291474 BGP RECV 172.14.10.2+51230 -> 172.14.10.1+179
Mar 16 19:12:58.291624 BGP RECV message type 1 (Open) length 59
Mar 16 19:12:58.291688 BGP RECV version 4 as 2 holdtime 90 id 192.168.2.1 parmlen 30
Mar 16 19:12:58.291752 BGP RECV MP capability AFI=1, SAFI=1
Mar 16 19:12:58.291802 BGP RECV Refresh capability, code=128
Mar 16 19:12:58.291850 BGP RECV Refresh capability, code=2
Mar 16 19:12:58.291915 BGP RECV Restart capability, code=64, time=120, flags=
Mar 16 19:12:58.291969 BGP RECV 4 Byte AS-Path capability (65), as_num 2
Mar 16 19:12:58.292385 advertising receiving-speaker only capabilty to neighbor 172.14.10.2
(External AS 2)
Mar 16 19:12:58.292452 bgp_senD. sending 59 bytes to 172.14.10.2 (External AS 2)
Mar 16 19:12:58.292522
Mar 16 19:12:58.292522 BGP SEND 172.14.10.1+179 -> 172.14.10.2+51230
Mar 16 19:12:58.292601 BGP SEND message type 1 (Open) length 59
Mar 16 19:12:58.293053 BGP SEND version 4 as 1 holdtime 90 id 192.168.2.1 parmlen 30
Mar 16 19:12:58.293124 BGP SEND MP capability AFI=1, SAFI=1
Mar 16 19:12:58.293173 BGP SEND Refresh capability, code=128
Mar 16 19:12:58.293221 BGP SEND Refresh capability, code=2
Mar 16 19:12:58.293284 BGP SEND Restart capability, code=64, time=120, flags=
Mar 16 19:12:58.293336 BGP SEND 4 Byte AS-Path capability (65), as_num 1
Mar 16 19:12:58.293517 bgp_senD. sending 19 bytes to 172.14.10.2 (External AS 2)
Mar 16 19:12:58.293573
Mar 16 19:12:58.293573 BGP SEND 172.14.10.1+179 -> 172.14.10.2+51230
Mar 16 19:12:58.293665 BGP SEND message type 4 (KeepAlive) length 19
Mar 16 19:12:58.296781
Mar 16 19:12:58.296781 BGP RECV 172.14.10.2+51230 -> 172.14.10.1+179

Mar 16 19:12:58.296897 BGP RECV message type 4 (KeepAlive) length 19
Mar 16 19:12:58.297451 bgp_senD. sending 19 bytes to 172.14.10.2 (External AS 2)
Mar 16 19:12:58.297528
Mar 16 19:12:58.297528 BGP SEND 172.14.10.1+179 -> 172.14.10.2+51230
Mar 16 19:12:58.297600 BGP SEND message type 4 (KeepAlive) length 19
Mar 16 19:12:58.298102 bgp_senD. sending 23 bytes to 172.14.10.2 (External AS 2)
Mar 16 19:12:58.298185
Mar 16 19:12:58.298185 BGP SEND 172.14.10.1+179 -> 172.14.10.2+51230
Mar 16 19:12:58.298273 BGP SEND message type 2 (Update) length 23
Mar 16 19:12:58.298322 BGP SEND End of RIB. AFI 1 SAFI 1
Mar 16 19:12:58.301834
Mar 16 19:12:58.301834 BGP RECV 172.14.10.2+51230 -> 172.14.10.1+179
Mar 16 19:12:58.301957 BGP RECV message type 4 (KeepAlive) length 19
Mar 16 19:12:58.302034 bgp_read_v4_messagE. done with 172.14.10.2 (External AS 2) received
19 octets 0 updates 0 routes
Mar 16 19:12:58.304594
Mar 16 19:12:58.304594 BGP RECV 172.14.10.2+51230 -> 172.14.10.1+179
Mar 16 19:12:58.304702 BGP RECV message type 2 (Update) length 23
Mar 16 19:12:58.304765 BGP RECV End of RIB. AFI 1 SAFI 1
Mar 16 19:12:58.304848 bgp_read_v4_messagE. done with 172.14.10.2 (External AS 2) received
23 octets 1 update 0 routes
Mar 16 19:13:22.968415 bgp_senD. sending 19 bytes to 172.14.10.2 (External AS 2)
Mar 16 19:13:22.968586
Mar 16 19:13:22.968586 BGP SEND 172.14.10.1+179 -> 172.14.10.2+51230
Mar 16 19:13:22.968675 BGP SEND message type 4 (KeepAlive) length 19
Mar 16 19:13:26.901339
Mar 16 19:13:26.901339 BGP RECV 172.14.10.2+51230 -> 172.14.10.1+179
Mar 16 19:13:26.901464 BGP RECV message type 4 (KeepAlive) length 19

Mar 16 19:13:26.901543 bgp_read_v4_messagE. done with 172.14.10.2 (External AS 2) received
19 octets 0 updates 0 routes
Mar 16 19:13:51.335927 bgp_senD. sending 19 bytes to 172.14.10.2 (External AS 2)
Mar 16 19:13:51.348180
Mar 16 19:13:51.348180 BGP SEND 172.14.10.1+179 -> 172.14.10.2+51230
Mar 16 19:13:51.348296 BGP SEND message type 4 (KeepAlive) length 19
Mar 16 19:13:53.844160
Mar 16 19:13:53.844160 BGP RECV 172.14.10.2+51230 -> 172.14.10.1+179
Mar 16 19:13:53.844329 BGP RECV message type 4 (KeepAlive) length 19
Mar 16 19:13:53.844392 bgp_read_v4_messagE. done with 172.14.10.2 (External AS 2) received
19 octets 0 updates 0 routes
— Exhibit —
Click the Exhibit button.
Looking at the traceoptions output, what is the current keepalive timer set for in BGP?

— Exhibit –

— Exhibit —
Click the Exhibit button.
As shown in the exhibit, a legacy IP phone is attached to Switch-1. The phone does not support
LLDP-MED, but does allow configuration using DHCP. Existing network CoS policies dictate that
VoIP traffic must use VLAN 10.
Which two actions put VoIP traffic onto VLAN 10? (Choose two.)

— Exhibit –

— Exhibit —
Click the Exhibit button.
Which statement about the non-ABR router in Area 2 in the exhibit is true?

— Exhibit –

— Exhibit —
Click the Exhibit button.
Referring to the exhibit, you want to configure Switch-1 to allow a user on interface ge-0/0/10 to
accommodate both voice and data traffic. Your phones and your switches are LLDP-MED
capable.
What is the minimal configuration that allows LLDP-MED to autoconfigure your phone’s voice
VLAN?

— Exhibit –

— Exhibit —
Click the Exhibit button.

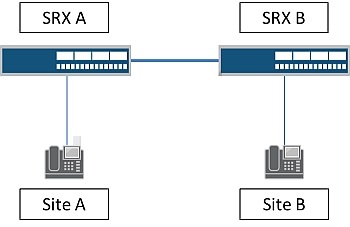

Site A is sending voice traffic marked with DSCP code EF. SRX A has the default CoS classifier.
Into which forwarding class is SRX A classifying traffic?

— Exhibit –

— Exhibit —
Click the Exhibit button.
In the exhibit, the routers in the network have a default PIM sparse mode configuration. R2 shows
that R1 is the RPF next hop for the source, and R3 is the RPF next hop for the RP. Host1 is
currently receiving multicast traffic for group 231.1.1.1. Host2 has come online and is attempting to
join group 232.1.1.1. R2 has just received an IGMP message with the source and group
addresses.
Which step happens next so that Host2 can join the multicast group?

— Exhibit –

— Exhibit —
Click the Exhibit button.
In the exhibit, the provider bridges are using Q-in-Q tunneling to tunnel VLAN 100 traffic over
VLAN 200.
What is the correct VLAN configuration for Q-in-Q tunneling on Provider Bridge A?
