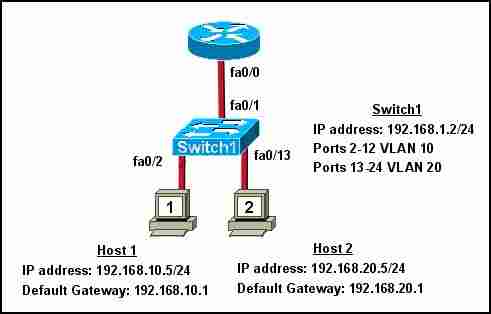

What commands must be configured on the 2950 switch and the router to allow communication
between host 1 and host 2? (Choose two.)
A.
Router(config)# interface fastethernet 0/0
Router(config-if)# ip address 192.168.1.1 255.255.255.0
Router(config-if)# no shut down
B.
Router(config)# interface fastethernet 0/0
Router(config-if)# no shut down
Router(config)# interface fastethernet 0/0.1
Router(config-subif)# encapsulation dot1q 10
Router(config-subif)# ip address 192.168.10.1 255.255.255.0
Router(config)# interface fastethernet 0/0.2
Router(config-subif)# encapsulation dot1q 20
Router(config-subif)# ip address 192.168.20.1 255.255.255.0
C.
Router(config)# router eigrp 100
Router(config-router)# network 192.168.10.0
Router(config-router)# network 192.168.20.0
D.
Switch1(config)# vlan database
Switch1(config-vlan)# vtp domain XYZ
Switch1(config-vlan)# vtp server
E.
Switch1(config)# interface fastethernet 0/1
Switch1(config-if)# switchport mode trunk
F.
Switch1(config)# interface vlan 1
Switch1(config-if)# ip default-gateway 192.168.1.1
Explanation:
The router will need to use subinterfaces, where each subinterface is assigned a VLAN and IP
address for each VLAN. On the switch, the connection to the router need to be configured as a
trunk using the switchport mode trunk command and it will need a default gateway for VLAN 1.
